SR-33 Slip Ring

Slip-Rings

SR-33

Multi-Channel Slip Ring

The SR-33, provides 33 independent electrical circuits with high accuracy channels for Payloads or any other platforms where high quality current and signal transmissions are required. Slip Ring capabilities endure harsh environmental conditions. Made of outstanding raw materials for extended lifetime.

Request A Quote

Click Here

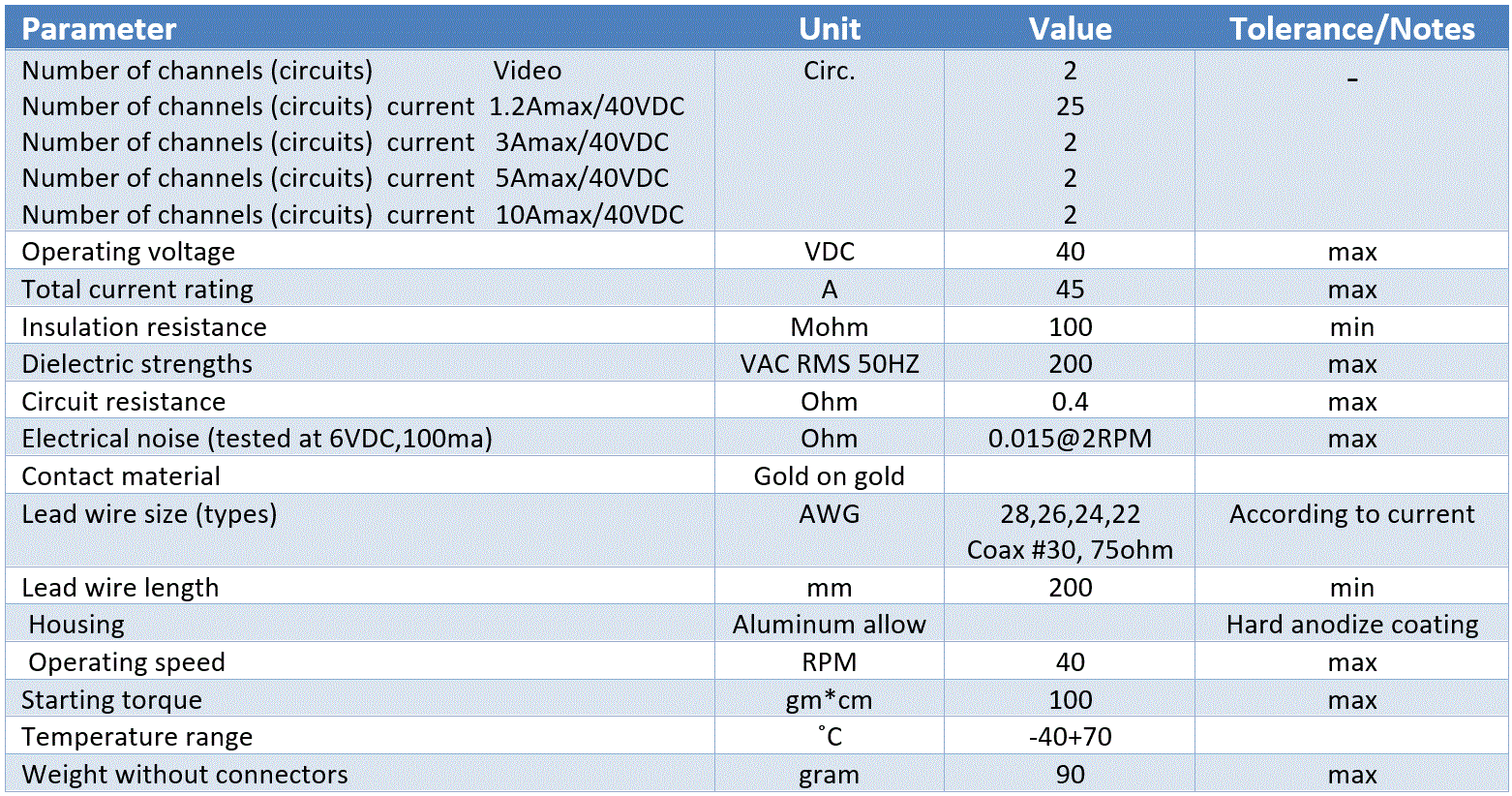

Specifications

SRP-20	Pancake 20 circuits Slip Ring
SR-33	33 circuits, High Accuracy Channels, High Quality Current and signal transmissions.
SR-3300	60 circuits, 2 A max per circuit (without case)
SR-5040	50 circuits, 1.5A, 5A, 10A (44, 4, 2 cir.) per circuit (with alum. case)
SR-4400	80 circuits, 2 A max per circuit (without case)
SR-4260	42 circuits, 8A or 15A max per circuit (with aluminum case)
